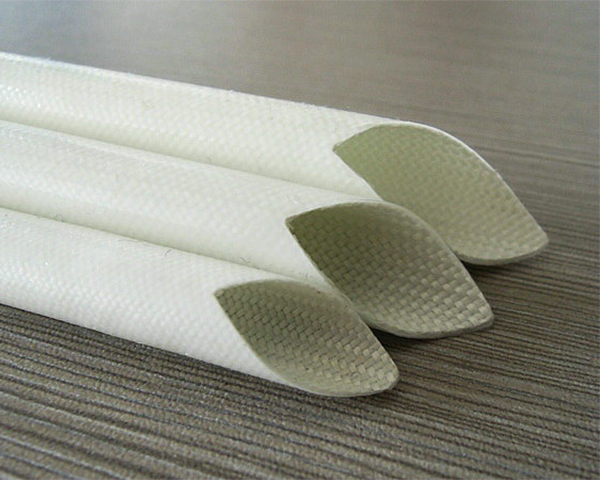

Silicon resin glass fiber tube
Woven from alkaline -free glass fiber to pipe -shaped organic silicon resin, and then complete it with high temperature treatment
Has good dielectric performance and good softness, flame retardant and temperature -resistant characteristics
Widely used for motors, household appliances, electric heating equipment, electronic devices and bundles
Flame retardant, environmental protection
Use temperature: -40 ℃ ～ 200 ℃
Environmental standards: ROHS standard
Color: white, other colors can be customized
Inquire Now
The DSG series products are painted with glass fiber woven settings and coated silicon resin and silicon rubber.
Treatment. Silicon resin and silicon rubber coating and high temperature treatment make DSG has good softness
And elastic, superior high temperature resistance and breakdown voltage strength.
Voltage level:
DSG-1 (1.5kV), DSG-2 (2.5kV), DSG-3 (4.0kV),
DSG-4 (7.0kV), DSG-5 (10.0kV)
Temperature -resistant level: H level
Application field: Widely used in electrical wire insulation and mechanical insurance for motors, transformers and other electrical appliancesProtect.
Product color: Various colors can be provided as required.
Properties | Ttarget | |
Dielectric Breakdown | DSG-1:1.5kv | |
DSG-2:2.5kv | ||
DSG-3:4.0kv | ||
DSG-4:7.0kv | ||
DSG-5:10.0kv | ||
Cold bend | -60°C/24h Nocackigodeachmenothecoaigaer24housa | -60 ℃ |
(mm) Inside Dia. | (mm) Toleranc | (mm) Wall thickness | ||||
DSG-1 | DSG-2 | DSG-3 | DSG-4 | DSG-5 | ||
0.5 ～ 2.5 |
+0.3 | 0.40±0.12 | 0.41±0.12 | 0.43±0.12 | 0.47±0.12 | 0.51±0.12 |
3.0 ～ 4.5 | 0.46±0.13 | 0.48±0.13 | 0.51±0.13 | 0.54±0.13 | 0.59±0.13 | |
5.0 ～ 8.0 | 0.50±0.15 | 0.52±0.15 | 0.55±0.15 | 0.59±0.15 | 0.64±0.15 | |
9.0 ～ 12.0 | +0.5 | 0.60±0.18 | 0.62±0.18 | 0.66±0.18 | 0.70±0.18 | 0.75±0.18 |
14.0 ～ 16.0 | 0.62±0.18 | 0.65±0.18 | 0.80±0.18 | 0.85±0.18 | 0.96±0.18 | |
18.0～ 25.0 | +1.0 | 0.64±0.18 | 0.66±0.18 | 0.82±0.18 | 0.86±0.18 | |
26.0 ～ 32.0 | 0.66±0.18 | 0.68±0.18 | 0.88±0.18 | 0.92±0.18 | ||
