Voltatex® Immersion paint 4030
Chemical composition: unsaturated polyester amine resin, styrene base
Product Description:
Yellow turbid liquid, a single component armosetable immersion resin. With favorable solidification conditions, the resin utilization efficiency is very high. Due to the formula formula, it can achieve excellent impregnation effect while consumption of low material.
VOLTATEX® 4030 meets the following EU instructions
-2003/11/EU (Polytin Penzide)
-2006/121/EU (Reach instruction)
-2011/65/EU (ROHS instruction)
characteristic
Single component
Lost loss of volatilization during use
High lacquer amount
The paint loss of paint when curing in the oven is low
Inquire Now
After the solidification, the resin has the following characteristics
Excellent solvents steam and long -term thermal stress;
High -adhesive strength;
Not easy to crack;
High attachment;
Tough resin formula
Application

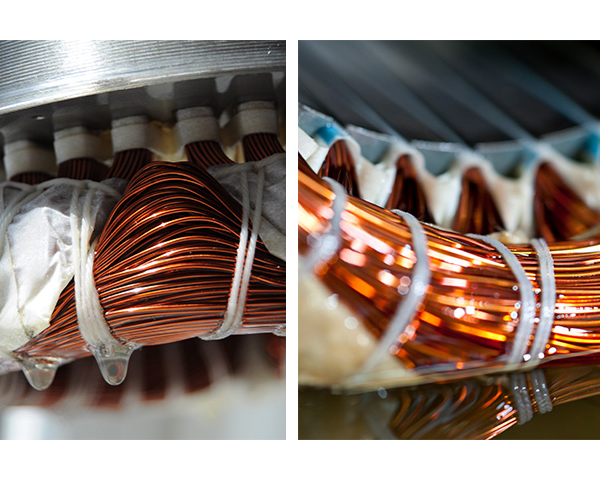

electric motor

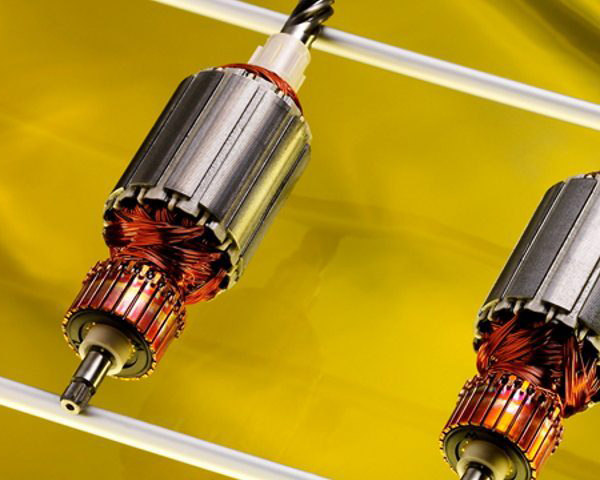

High -speed rotor motor and high -power motor
Transformer, especially suitable for thick layers and flat lines
The insulation system suitable for heat -resistant level 180 (h) (according to IEC 60085: 2007)
mix
Voltatex® 4030 can be used without adding other catalysts and curing agents
According to the needs of customers, you can adjust the viscosity by adding Voltatex® T031 diluent
Use process
This resin can be used in the following process
All conventional immersive processes
Continuous immersion and vacuum immersion process
Vacuum pressure impregnation process
When the storage is below 25 ° C, at least 20%of the paint in the monthly paint tank is used and adds new resin, then it can
Use it for a long time.
Solidify
In order to reduce the volatilization of the monomer during the curing process, the impregnated workpiece should be heated to the curing temperature in the shortest time. In addition, in
Within the scope of safety permits, the air flow should be maintained in the oven during the curing process.
Clean
Once the resin is solidified, it is difficult to dissolve, so the Voltatex® T050 cleaning equipment should be used regularly. Clean up all equipment
Maintenance work needs to follow the instructions of the equipment manufacturer.
Transportation and storage
Voltatex® 4030 provides a packaging method of 20kg or 200kg per barrel. In the unopened original packaging seal container, store
When the temperature does not exceed 25 ° C, the resin can be stored for 4 months. The container after opening needs to be sealed immediately to prevent sunlight
Radio.
Health and safety
The curing Voltatex® 4030 immersive resin has biological inertia and harmless to health. When using liquid resin, specific
See the company's Voltatex® 4030 material security data table (MSDS) and relevant local regulations.
Table 1: Characteristic data of liquid Voltatex® 4030 immersion resin | |
surface | Yellow, turbid liquid |
Flow time (23°C per Company standard-Voltatex ® 018 1)) | For 90 ± 9 sec |
Storage Stability (25°C) | 4 Months |
Viscosity (25°C, per DIN 53019) | 350-500mPa.s |
Reactive (100 °C, according to Company standard-Voltatex ® 0142)) | representative value |
Gel time reaction time |
10.0 – 15.0 min11.715.0 – 23.0 min18.3
|
Curing time: 3) | |
Immersion process, 130°C Immersion process, 150°C | 2 h 1 h |
Effect on enameled wire 4) | Compatible with all conventional enameled lines |
VOC content (according to DIN EN 60455-3-5:2006) | About 5.9% (weight ratio) |
