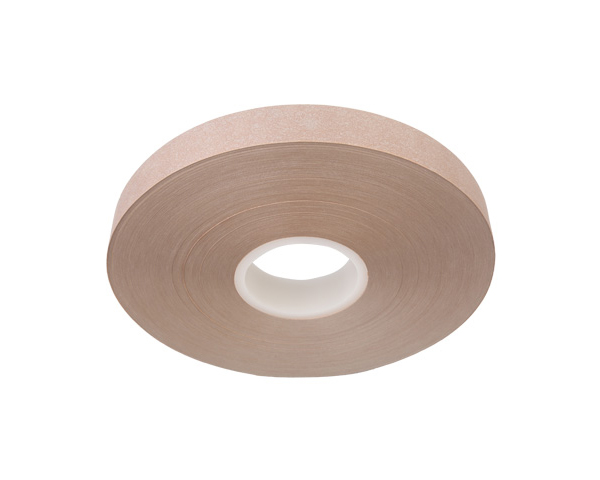

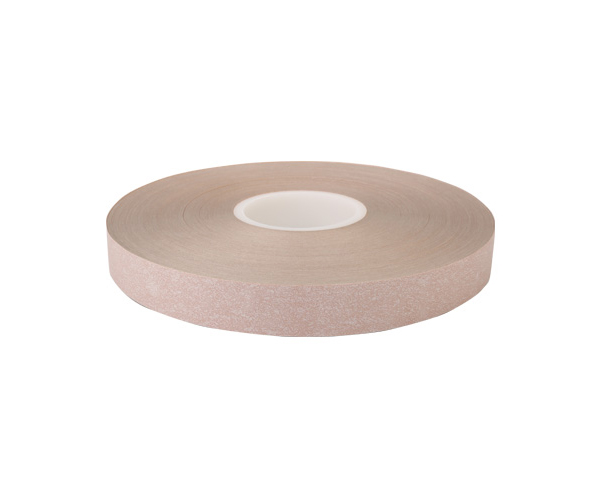

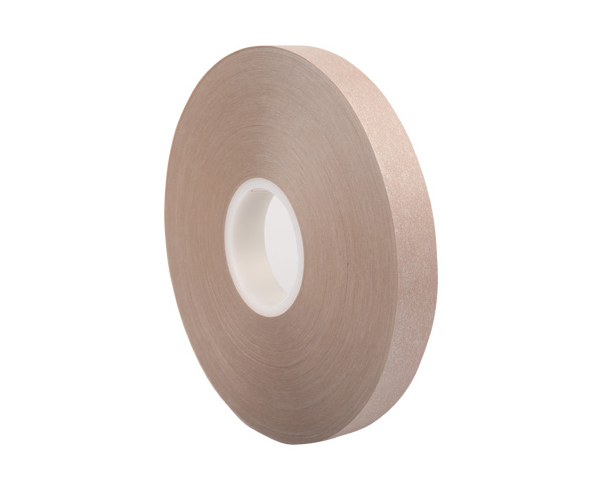

Composite insulation paper(AHA)


Temperature-resistant level: 180 C ° -220C °

Environmental certification: UL, RoHS, Reach, MSDS

System certification: IATF16949

Standard width: 914mm

Packing method: carton

Free sample: A4

Brand: Baigong®

Inquire Now


Description Parameter

1. Product brief

 Insulation grade: 180 C° -220C°

Baigong® AHA is three layers of soft composite material, the outside two layers are domestic aramid paper, and the inner layer is polyimide film.



2. Basic features

1. Excellent temperature resistance and mechanical properties.

2. Anti-elongation tear strength and excellent dielectric strength of the polyimide film.

3. size of product

Specification composite form insulation grade thickness standard width



specifications

Compound form

insulation grade

thickness

standard width

Baigong®AHA

Aramid -PolyimideAramid

H~C

0.12-0.60mm

914mm

Baigong®AH

Aramid -Polyimide film

H~C

0.07-0.41mm

914mm



Baigong® AHA core 3 inches inner diameter, can be supplied in full volume, or cut into plates or sheets, the length can be determined by customer requirements.



4. Product application

Baigong® AHA soft composite paper is widely used in electrical insulation system with its excellent performance. It is mainly used in the inter-groove insulation, inter-turn insulation and liner insulation of H-C class motor.



5. Storage advice

1. Store in a dry and clean room at room temperature.

2. Do not approach the source of fire, heating and direct sunlight.

3. The storage period is generally 12 months. If the storage period exceeds, it can still be used after passing the inspection according to the technical standards.







For detailed parameters, please contact the salesperson
