Zhejiang Ligao Insulation Material Co., Ltd.
Voltabas® Immersion paint 0305
Chemical composition: Low volatile, unsaturated polyester
Product description: Single component thermosettic impregnation resin
characteristic
• Single component
• excluding styrene and ethylene toluene
• Low volatile
• The risk of flammable and explosive
After curing, resin has the following characteristics:
• Good thermal performance and mechanical strength
• Good solvent resistance
Inquire Now
Application

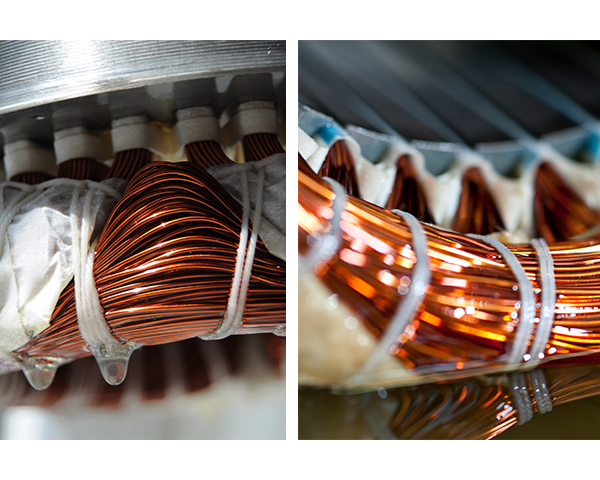

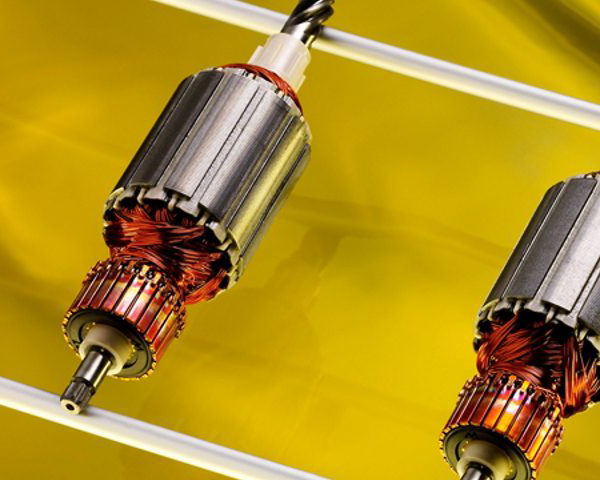

• Electric motor and large drive motor
• Transformer
mix
Voltabas 0305 can be used without adding another catalyst and curing agent
Use process
This resin can be used in the following process
• All conventional immersion and decorative process
• Continuous paint technology, vacuum painting technology or vacuum pressure immersion paint technology
• Clasick
Since we cannot list the possible design and applications, if we need to recommend and support with multiple suggestions and support, please be with our technical service team.
connect
Tank maintenance
When the storage is below 25 ° C, if at least 20%of the paint in the monthly paint tank is used and adds a new resin, then you can
Long -term use.
Solidify
Voltabas 0305 is a low volatile product. However, in order to reduce the volatilization of the monomer during the curing process, it should be impregnated in the shortest time
The workpiece is heated to curing temperature. In addition, within the scope of safety permission, the lowest airflow should be maintained during the cured process
move.
Equipment cleaning
Once the resin is solidified, it is difficult to dissolve, so the Voltatex® T050 cleaning equipment should be used regularly. Clean up all equipment
Maintenance work needs to follow the instructions of the equipment manufacturer.
Transportation and storage
VOLTABAS 0305 provides a packaging method of 20kg and 200kg per barrel. In the unopened original packaging seal container, the storage temperature
When the degree does not exceed 25 ° C, the resin can be stored for 6 months.
Resin must be kept away from sunlight. If it is not used after opening, it must be sealed immediately after removing the amount required.
Health and safety
The curing Voltabas 0305 immersive resin is biological inertia and harmless to health. When using liquid resin, specific
For security protection measures, please refer to the company's Voltabas 0305 Material Security Data Table (MSDS) and local relevant regulations.
Table 1: Characteristic data of liquid Voltaba s 0305 immersion resin | |
surface | Yellow-brown, transparent or slightly cloudy |
Viscosity (25°C, per DIN 53019) | 800-1200mPa.s |
Storage period (25°C) | Six months |
Reactive (100℃ according to Company standard 0141)) gel time |
10 – 30 min |
Curing time (2) Drop ishing process, 130°C Drop ishing process, 150°C Immersion craft, 130°C Immersion craft, 150°C | For the 15-30 min For about 10-15 min 2 Hours 1 Hour |

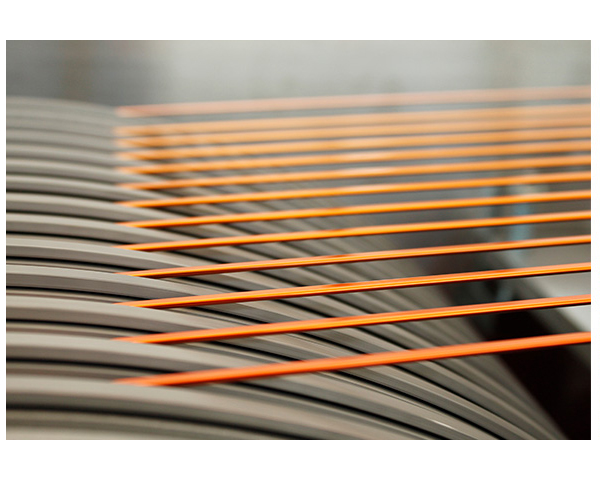

Effect on enameled wire 3) | Compatible with all conventional enameled lines |
Volatile volume (per DIN EN 60455-3-5:2006) | About 1.2% (weight ratio) |
