Composite insulation paper(AMA)

1. Product brief

 Insulation grade: 155 C° -220C°

Baigong® AMA is three layers of soft composite material, the outside two layers are domestic aramid paper, and the inner layer is polyester film.

2. Basic features

1. Excellent temperature resistance and mechanical properties.

2. Exextension tear strength and excellent dielectric strength of polyester film.

3. size of product

Specification composite form insulation grade thickness standard width

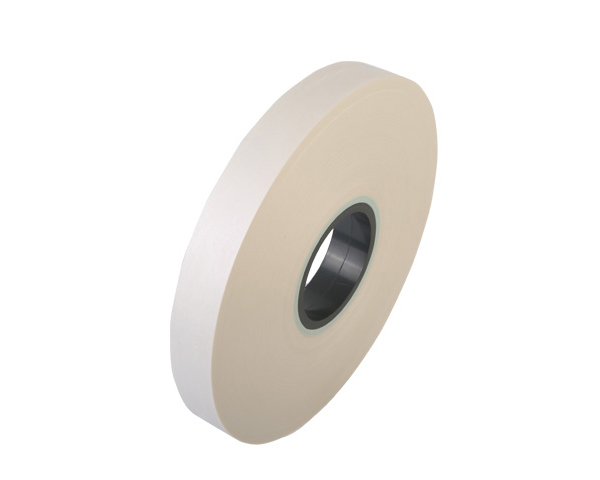

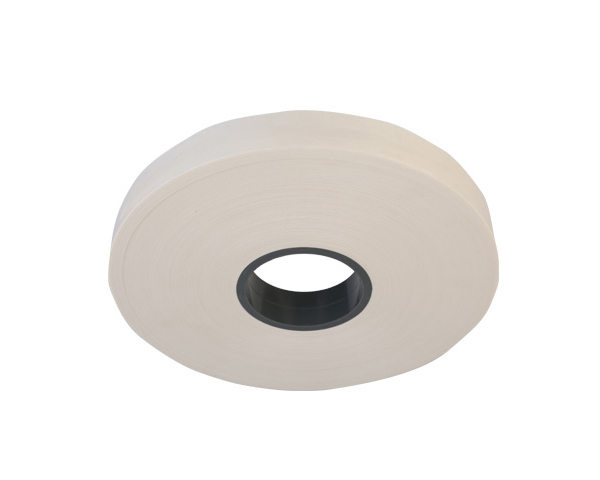

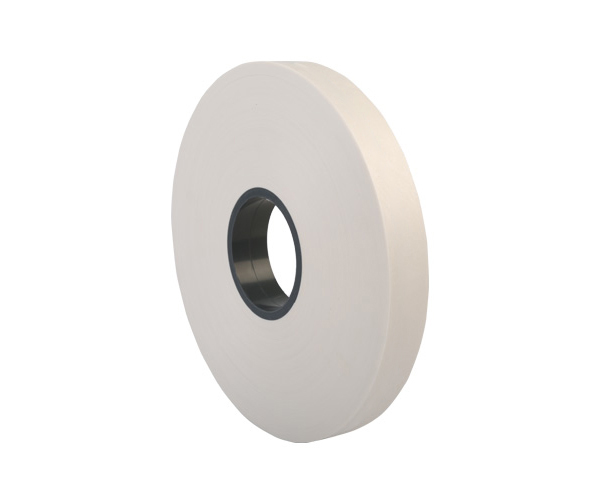

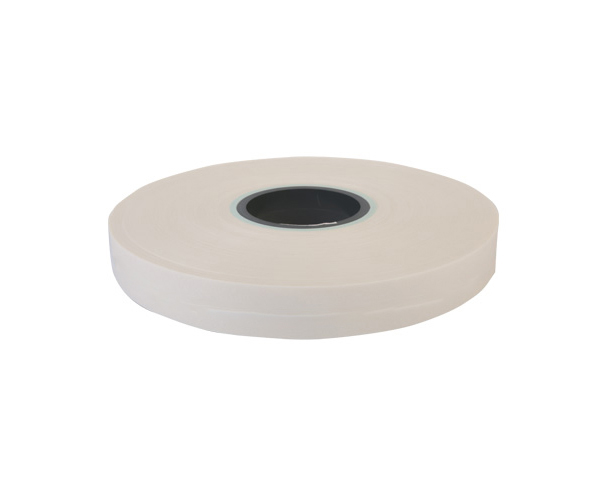

Baigong® The AMA core is 3 inches in diameter and can be supplied in full volume, or the length can be cut according to customer requirements.

4. Product application

Soflex® AMA soft composite paper is widely used in electrical insulation system with its excellent performance. It is mainly used in groove insulation, turn insulation and liner insulation of F-C motor.

5. Storage advice

1. Store in a dry and clean room at room temperature.

2. Do not approach the source of fire, heating and direct sunlight.

3. The storage period is generally 12 months. If the storage period exceeds, it can still be used after passing the inspection according to the technical standards.
